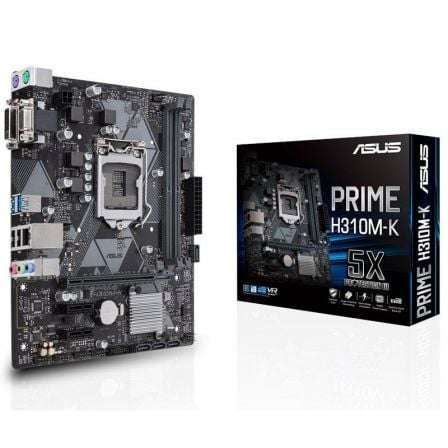

Placa Base Asus Prime H310M-K Socket 1151/ Micro ATX

”

• CPU

• Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
• Soporta Intel® 14 nm CPU
• Soporta Intel® Turbo Boost Technology 2.0
• * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
• * Refer to www.asus.com for CPU support list

• Chipset

• Intel® H310

• Memoria

• 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Soporta Intel® Extreme Memory Profile (XMP)

• Gráfica

• Integrada Intel® HD Graphics support
• Multi-VGA output support : DVI-D/D-Sub ports
• Soporta DVI-D with max. resolution 1920 x 1200 @ 60 Hz
• Soporta D-sub with max. resolution 1920 x 1200 @ 60 Hz
• Maximum shared memory of 1024 MB (for iGPU exclusively)
• Soporta Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

• Slots de expansión

• 1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
• 2 x PCIe 3.0/2.0 x1

• Storage

• Intel® H310 Chipset :
• 4 x SATA 6Gb/s port(s), gray,
• LAN
• Realtek® RTL8111H, 1 x Gigabit LAN

• Audio

• Realtek® ALC887 8-Channel High Definition Audio CODEC
• Soporta : Jack-detection, Front Panel Jack-retasking

• Puertos USB

• Intel® H310 Chipset :
• 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
• Intel® H310 Chipset :
• 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

• Puertos I/O traseros

• 1 x PS/2 keyboard (purple)
• 1 x PS/2 mouse (green)
• 1 x DVI-D
• 1 x D-Sub
• 1 x LAN (RJ45) port(s)
• 2 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps
• 2 x USB 2.0
• 3 x Audio jack(s)

• Puertos I/O internos

• 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x COM port(s) connector(s)
• 4 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x Chassis Fan connector(s) (1 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Clear CMOS jumper(s)
• 1 x System panel connector
• 1 x Speaker connector

• Sistema operativo

• Windows® 10 64-bit

• Factor de forma

• mATX Form Factor 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm ).

“
